Gledhill TORRENT Indirect Thermal Store
Gledhill TORRENT Direct thermal store
Gledhill TORRENT Multifuel Thermal Store

This product has been superseded. It appears here for your reference and as a means to identify a suitable replacement.
Gledhill Torrent Torrent Direct thermal store - older model

Thermal Store By Gledhill


The Electrically Heated open vented cylinder that produces Mains Pressure Hot Water


To see many other types of cylinder in our comprehensive range click here


The original TORRENT Thermal Store has been superseded by the new

TORRENT Multifuel thermal Store.

All the advantages of the older unit with new features

For all the information please click here

For a unit heating on electricity only please see TORRENT Multifuel OV




For providing mains pressure hot water heated by electricity ONLY

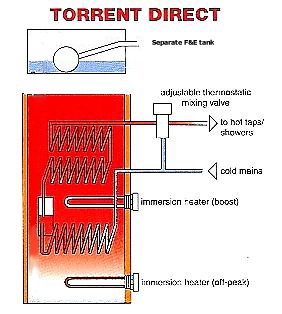

TORRENT DIRECT is an electrically heated, mains pressure hot water heat store, that makes the most of off-peak tariffs - in much the same way as an Economy 7 cylinder operates. It is a combination unit which incorporates a feed and expansion tank and eliminates the problems associated with a cold water cistern in the roof space.

By immersing a large mains pressure coil within the cylinder, cold water is converted to hot by means of speedy thermal transfer as it passes through.

A thermostatic blending valve (supplied) ensures the output temperature from the heat store cannot exceed a selectable limit, so there should never be a danger of scalding - a particularly handy safety feature with the young and elderly.

The Torrent is supplied complete with two low watts density immersion heaters for extra quiet operation as recommended by the Electricity Council.

'Draw-off' for baths and 'flow' for power showering operate from this one compact unit which means there are more siting options, maximising building design flexibility.

Thermal stores (also known as heat stores) are fast becoming the preferred way to create mains pressure hot water without the dangers associated with unvented systems.


The TORRENT Direct is insulated in a 60mm thick high performance non toxic, non combustible Rockwool Flexilag jacket

The Torrent thermal store is so easy and safe to install it is not governed by the G3 Building Regulations in the UK. What's more, if you have a suitable incoming cold water main, retrofitting the TORRENT is simple way to convert a domestic system from gravity to mains pressure.

Because there are no dangers associated with the TORRENT, such as pressure or relief valves, the cylinder does not require annual servicing like its unvented counterparts. With no moving parts you can expect long and trouble-free service from your Torrent.

The Direct Model is ideal for Flats or Apartments where you may not have access to loft space and electricity is your only energy source.



Somebody offered to price match? Click here to read more.....


The original TORRENT Thermal Store has been superseded by the new

TORRENT Multifuel thermal Store.

For all the information please click here



Prices as of January 2011

Model T144DE T210DE T210DE-RE

Suggested dwelling type


1-2 Bedrooms with

1 Bathroom

2-3 Bedrooms with

1 Bath / 1 Shower

2-3 Bedrooms with

1 Bath or Shower

Price including VAT

  1030.05 1088.91 1351.48
Nominal Storage (Capacity) (Litres) 160 230 230
Overall Dimensions (H x Dia) including F&E Cistern (mm) 1650 x 550 1670 x 595 1670 x 595
Minimum cupboard size (w x D x H) (mm) 700 x 600 x 1900 750 x 600 x 2120 750 x 600 x 2120
Weight (Empty / Full) (kg) 37 / 197 45 / 272 53 / 282
Volume heated by top immersion heater (Litres) 70 90 60
Mains cold water inlet pressure range (bar) 1.5 - 3.5 1.5 - 3.5 1.5 - 3.5
Hot Water Flow Rate (litres/min) 15 15 15
Max working pressure - Solar Heat Exchanger (bar) - - 6
Cold feed   22mm comp' 22mm comp' 22mm comp'
Open vent   22mm comp' 22mm comp' 22mm comp'
Drain valve   R 1/2" R 1/2" R 1/2"
Solar Heat Exchanger       15mm comp'
Off Peak & On Peak Immersion Heaters   2 no. 3kW 230Vac 50Hz (Type 2)

(All equipment must be suitable for a maximum working pressure of 10 bar)
