Gledhill TORRENT Indirect Thermal Store

	Thermal Store By Gledhill
Torrent Indirect thermal store

Mains Pressure Hot Water from an open vented heat store

To see many other types of cylinder in our comprehensive range click here

The original TORRENT Thermal Store has been superseded by the

TORRENT Multifuel thermal store.

All the advantages of the older unit with new features

For all the information please click here

Use the information below to indentify your thermal store and a suitable replacement.

TORRENT INDIRECT Thermal Store

For use with a remote heat source (e.g. GAS or OIL boiler)

TORRENT Indirect is an open vented hot water heat store that produces mains pressure hot water and is suitable for both open vented and sealed heating systems.

By immersing a large mains pressure coil within the heat store, cold water is converted to hot by means of speedy thermal transfer as it passes through. A thermostatic blending valve (supplied) ensures the output temperature cannot exceed a pre-set limit.

The Indirect unit can be fitted with a conventional 'S' plan, 'Y' plan or a control system of your choice. Units are suitable for left or right hand fitting.

Header tank (supplied) to be sited remotely
All copper construction
Insulated in high performance, non-toxic, non-combustible Rockwool

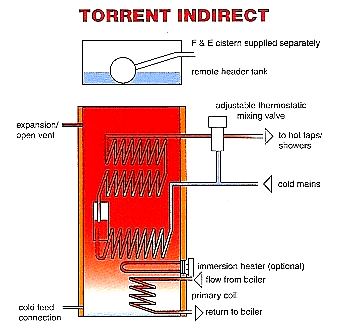

Torrent Indirect Thermal store diagram

Thermal stores (or Heat Stores) are fast becoming the preferred way to create mains pressure hot water without the dangers associated with unvented systems. The Torrent thermal store is so easy and safe to install it is not governed by the G3 Building Regulations in the UK. What's more, if you have a suitable incoming cold water main, retrofitting the TORRENT is simple way to convert a domestic system from gravity to mains pressure.

Because there are no dangers associated with the TORRENT, such as pressure or relief valves, the cylinder does not require annual servicing like its unvented counterparts. With no moving parts you can expect long and trouble-free service from your Torrent.

Somebody offered to price match? Click here to read more.....

The Torrent is now available with or without a primary heat exchanger (boiler coil). If you wish to fire your boiler directly into the shell of the cylinder and run an open vented central heating system choose the OV Model. If you wish to run a sealed primary and central heating system (i.e. pressurised radiator circuit) choose the SP Model. Don't hesitate to ask for advice.

Special Offer INFO

This product has been superseded by

TORRENT Multifuel thermal store.

TORRENT (Indirect)
Suggested dwelling type (guesstimated usage)		2-3 bedrooms 1 bath 1 shower	2-4 bedrooms 1 bath & 1 shower	3-4 bedrooms 2 bath & 1 shower	3-5 bedrooms 2 baths & 2 showers
SP = with boiler coil	Model	T130 IND SP	T170 SP	T210 SP	T250 SP
Price Inc VAT		£1103.64	£1191.92	£1280.22	£1374.90

OV = without boiler coil	Model	T130 IND OV	T170 OV	T210 OV	T250 OV
Price Inc VAT		£997.20	£1085.45	£1173.78	£1268.48
Immersion Heater specially calibrated for use with Torrent SP & OV (Optional) - £37.89
Prices at January 2011


Technical Information
Nominal Storage capacity	(litres)	135	176	216	256
Overall dimensions (incl F&E cistern) height x diameter	(mm)	1545 x 520	1865 x 520	1835 x 570	2080 x 570
Minimum cupboard size (W x D x H)	(mm)	700 x 600 x 1880	700 x 600 x 2100	700 x 600 x 2200	700 x 600 x 2450
Weight (Empty / Full)	(kg)	36 / 163	43 / 210	46 / 251	54 / 296
Max working pressure (heating system when sealed)	(bar)	3.5	3.5	3.5	3.5
Mains cold water inlet pressure	(bar)	1.5 - 3.0	1.5 - 3.0	1.5 - 3.0	1.5 - 3.0
Hot water flow rate	(l/min)	18	18	25	25
Typical boiler size required	(kW)	20	20	25	25
F&E Cistern (height approx)	(mm)	400	400	400	400

Connections
- Cold feed		22mm	22mm	22mm	22mm
- Open vent		22mm	22mm	22mm	22mm
- Boiler Flow & Return		22mm	22mm	28mm	28mm
- Central Heating Flow & Return		22mm	22mm	28mm	28mm
- Wood Burning Stove (optional)		28mm	28mm	28mm	28mm
- Drain valve tapping		R 1/2"	R 1/2"	R 1/2"	R 1/2"

Primary (boiler) heat exchanger
- Max working pressure	(bar)	3.0	3.0	3.0	3.0
- Rating	(kW)	20	25	30	35
- Water content	(litres)	5.0	6.0	7.0	8.0

Related Literature:

Gledhill Torrent Thermal Store Technical Manual
