Economy 7 Combination Hot Water Cylinders

Economy 7 Combination cylinders by Gledhill



Off-peak electric hot water storage by Gledhill

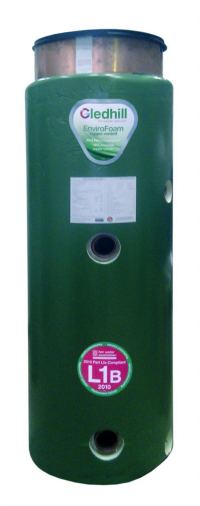

Economy 7 Combination copper hot water cylinder

Direct and Indirect Economy 7 cylinders with combined cold water compartment

An Economy 7 cylinder is designed to exploit 'off-peak' electricity, typically available through the night.

An E7 Combination cylinder combines a cold water header compartment at the top of the cylinder (removing the need for a separate header tank) and heats the water in the main body using electrical immersion heaters.

A feature of an E7 cylinder or tank is the addition of a second immersion heater (unlike a standard direct cylinder that only has one). The lower of the two elements is typically connected to the economy supply/tariff, the upper heater is usually used as a boost element and operated manually when demand for hot water exceeds that stored. Our cylinders are supplied with the two immersion heater bosses (the bit you screw the heater into) but immersion heaters are sold separately. Please enquire.

Because you are heating your cylinder overnight it is important to not to loose the stored heat by the morning. Economy 7 cylinders are therefore fitted with an extra thick jacket of insulation - Nominally 50mm thick, as opposed to the 30mm jacket on a standard cylinder.

The newest evolution in foam insulation is known as Envirofoam, Exceeding the expectations of Part L of the Building Regulations. Furthermore, because it is biodegradable it will cause no future harm to the environment.

And the cost? You be delighted to know that our cylinders are not only cheaper to buy, the high performance insulation contributes towards a cylinder that's cheaper to run.



Value, Quality, Efficiency and Discount !





 ECONOMY 7 DIRECT COMBINATION HOT WATER CYLINDERS

Fitted with: Options: on request
  • 1" bosses
  • 2 x 2 1/4" IMH boss (Immersion heaters not included)
  • Cold water compartment
  • Envirofoam High Performance Insulation
  • See option list below

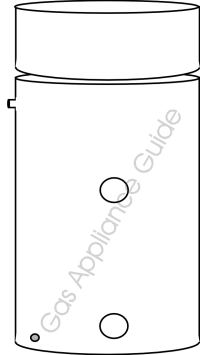

Economy 7 DIRECT Combination hot water cylinder heated by two immersion heaters

Economy 7 Direct Combination Hot Water Cylinder prices





Gas Appliance Guide - Still bringing you the BEST prices in the UK!

Somebody offered to price match? Click here to read more.....



ECONOMY 7 DIRECT COMBINATION CYLINDER PRICES

mm Capacity (hot/cold) inches Price inc vat
900 x 450 65 / 20 36 x 18 POA
1050 x 450 110 / 40 42 x 18 POA
1200 X 450 120 / 40 48 X 18 383.00
1400 x 450 144 / 40 55 x 18 386.47
1500 x 450 166 / 40 60 x 18 412.78
1850 x 450 210 / 40 72 x 18 455.35

INDIRECT

Note: Cylinder illustrations are for guidance only. The relative location of the hot water outlet to immersion heaters (and boiler connections where applicable) may positioned to customer requirements thereby enabling easy fitting/retrofit. Please refer to Designing a Cylinder section.

In the cylinder industry nothing should be assumed or regarded as 'standard'. Features such and as the position of connections, a shower take off, drain, boiler control stat/sensor pocket or any other item should be stated as a requirement, not assumed.



ECONOMY 7 INDIRECT COMBINATION HOT WATER CYLINDERS

Fitted with: Options: on request
  • 1" bosses
  • 2 x 2 1/4" IMH boss (Immersion heaters not included)
  • Boiler Coil
  • Envirofoam High Performance Insulation
  • See options list below

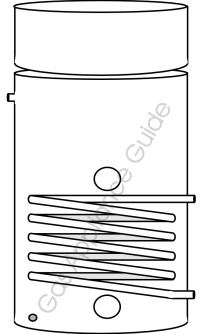

Economy 7 INDIRECT Combination hot water cylinder with two immersion heaters and boiler coil

Economy 7 Indirect Combination Hot Water Cylinder prices





Gas Appliance Guide - Still bringing you the BEST prices in the UK!

Somebody offered to price match? Click here to read more.....





ECONOMY 7 INDIRECT COMBINATION CYLINDER PRICES

mm Capacity (litres) inches Price inc vat
900 x 400 65 / 15 36 x 16 341.74
1050 x 400 86 / 20 42 x 16 362.87
1200 x 400 110 / 20 48 x 16 419.43
1400 x 400 126 / 20 55 x 16 436.51
1500 x 400 140 / 25 60 x 16 457.99
1800 x 400 145 / 30 72 x 16 537.57
900 x 450 85 / 20 36 x 18 341.74
1050 x 450 115 / 20 42 x 18 362.87
1200 X 450 120 / 40 48 X 18 419.43
1400 x 450 144 / 40 55 x 18 436.51
1500 x 450 166 / 40 60 x 18 457.99
1800 x 450 210 / 40 72 x 18 537.57




Additions and optional extras

Options available at additional cost include:


  Compression fittings (instead of threaded bosses) 12.00
  Shower take-off 17.50
  Additional Tappings (pairs) 18.00
  Secondary return 12.00

  Immersion Heater (Incalloy) 3kW alloy coated (corrosion resistant) 32.00
  Drain valve (drain cock) [threaded boss included on cylinder] 7.50

  Hi recovery boiler coil (pumped) - indirect model only 45.00
  Super Recovery coil (Pumped) poa
  Ball valve and overflow (supplied loose - not installed) 15.00
  Additional immersion boss (already supplied with two) 18.00
  Gravity boiler coil with 28mm connections (Large bore for AGA, wood burner etc) - Indirect model only

78.00

(please add to stated price)

Positioning tappings to your specification does not normally attract a supplementary charge


When sizing a cylinder remember the stated dimensions do not include the thickness of insulation. You must add the thickness of insulation to the cylinder dimension to obtain the finished size. This is most important if the cylinder needs to pass through a doorway or access hatch. Make sure you have enough room to make connections and service immersion heaters.

Illustrations are for guidance only and should not be interpreted as an exact representation.



All cylinders are produced under BS EN ISO 9001:2000 Quality Systems. All Cylinders are manufactured and compliant with Part L Building Regulations

All cylinders are independently approved for compliance with the Water Supply (Water Fittings) Regulations 1999.

(More information: Cylinder Terminology Explained)
