Economy 7 Hot Water Cylinders

Economy 7 Hot water Cylinders by Gledhill

Domestic copper hot water cylinders


Direct and Indirect Economy 7 Hot Water Cylinders

off-peak electric Hot Water Storage by Gledhill

Economy 7 hot water cylinder by Gledhill

ECONOMY 7 Copper hot water tanks and cylinders

An Economy 7 cylinder is designed to exploit 'off-peak' electricity, typically available throughout the night. A feature of an E7 cylinder or tank is the addition of a second immersion heater (unlike a standard direct cylinder that only has one). The lower of the two elements is typically connected to the economy supply/tariff, the upper heater is usually used as a boost element and operated manually when demand for hot water is high. Our cylinders are supplied with the two immersion heater bosses (the bit you screw the heater into) but immersion heaters are sold separately. Please enquire.

Because you are heating your cylinder overnight it is important to not to loose the stored heat by the morning. Economy 7 cylinders are therefore fitted with an extra thick jacket of insulation - typically 60mm thick, as opposed to the 30mm jacket on a standard cylinder.

Value, Quality, Efficiency and Discount !



PLEASE NOTE: Economy 7 cylinders have an insulating layer approx nominal 50mm thick for enhanced performance. You must add this to the dimensions shown on the table below for over all measurement.



 ECONOMY 7 DIRECT copper cylinders

Fitted with: Options: by request
  • 1" bosses
  • 2 x 2 1/4" IMH boss (Immersion heaters not included)
  • Envirofoam HQ insulation
  • See options list below

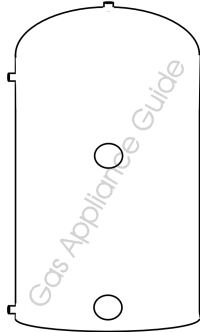

Economy 7 Direct hot water cylinder - twin immersion heaters

Economy 7 Direct hot water cylinder prices







Gas Appliance Guide - Still bringing you the BEST prices in the UK!

Somebody offered to price match? Click here to read more.....


mm Capacity (litres) inches Price inc vat
1050 x 400 116 42 x 16 210.02
900 x 450 120 36 x 18 210.02
1050 x 450 144 42 x 18 284.15
1200 x 450 166 48 x 18 305.31
1500 x 450 210 60 X 18 363.57
Other sizes available by request

 ECONOMY 7 INDIRECT copper cylinders

Fitted with: Options: by request
  • 1" bosses
  • 2 x 2 1/4" IMH boss (Immersion heaters not included)
  • Boiler coil
  • Envirofoam HQ insulation
  • See options list below


Economy 7 Indirect cylinder - twin immersion heaters and boiler heat exchanger for gravity hot water system

Economy 7 Indirect hot water cylinder prices







Gas Appliance Guide - Still bringing you the BEST prices in the UK!

Somebody offered to price match? Click here to read more.....


mm Capacity (litres) inches Price inc vat
1050 x 400 114 42 x 16 286.49
900 x 450 117 36 x 18 286.49
1050 x 450 140 42 x 18 302.00
1200 x 450 162 48 x 18 365.79
1500 x 450 206 60 X 18 423.58

Other sizes available by request



Additions and optional extras

Options available at additional cost include:


  Compression fittings (instead of threaded bosses) 12.00
  Shower take-off 17.50
  Additional Tappings (pairs) 18.00
  Secondary return 12.00

  Immersion Heater (Incalloy) 3kW alloy coated (corrosion resistant) 32.00
  Drain valve (drain cock) [threaded boss included on cylinder] 7.50

  Hi recovery boiler coil (pumped) - indirect model only 45.00
  Super Recovery coil (Pumped) poa
  Ball valve and overflow (supplied loose - not installed) 15.00
  Additional immersion boss (already supplied with two) 18.00
  Gravity boiler coil with 28mm connections (Large bore for AGA, wood burner etc) - Indirect model only

78.00

(please add to stated price)

Positioning tappings to your specification does not normally attract a supplementary charge


When sizing a cylinder remember the stated dimensions do not include the thickness of insulation. You must add the thickness of insulation to the cylinder dimension to obtain the finished size. This is most important if the cylinder needs to pass through a doorway or access hatch. Make sure you have enough room to make connections and service immersion heaters.

Illustrations are for guidance only and should not be interpreted as an exact representation.





Note: Cylinder illustrations are for guidance only. Connections may be positioned to customer requirements (please refer to Designing a Cylinder section) and those shown should not be regarded as 'standard'.

Illustrations show a shower take off/secondary return side mounted at high level. This is not a standard feature and as with a drain, boiler control stat/sensor pocket or any other feature should be stated as a requirement.

Economy 7 Hot Water Cylinders



 (Further information  Cylinder Terminology Explained)

All cylinders are produced under BS EN ISO 9001:2000 Quality Systems. All Cylinders are manufactured and compliant with Part L Building Regulations 2002.

All cylinders are independently approved for compliance with the Water Supply (Water Fittings) Regulations 1999.

Supplied fully insulated with a thermally advanced and environmentally friendly rockwool jacket, offering continued high performance throughout the life of the cylinder

Some parts of Scotland, Wales, the West Country and Islands around the UK may require special delivery arrangements, for which there may be a charge. Please don't hesitate to enquire.
