Gledhill Boilermate BMSCP Eco stainless


Gledhill Boilermate BMSCP Eco - Mains Pressure Hot Water from a thermal store

Index Page > GLEDHILL PRODUCTS > Gledhill Boilermate BMSCP Eco Stainless

Understand a Boilermate - Click here for more

Mains pressure hot water from an open vented thermal

store

Whilst highly desirable, mains pressure hot water has historically brought with it the dangers associated with unvented (pressurised) cylinders - EXPLOSION! Until the advent of the Boilermate that is!

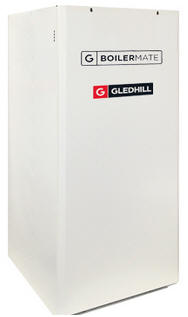

Gledhill Boilermate BMSCP Eco Stainless (1)

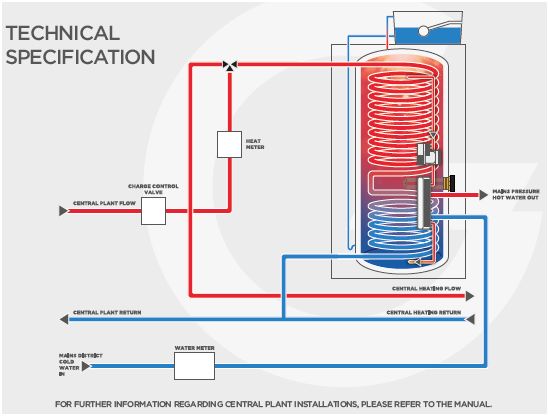

Boilermate BMSCP Eco Stainless Schematic (tmb)

Click picture to enlarge

With the simple yet clever addition of a mains-pressure heat exchanger a normal gravity pressure open-vented vessel can be transformed to provide mains pressure hot water with performance to match any other system.

High performance mains pressure hot water without any of the baggage unvented systems bring with them - G3 Building Regs, Specialist Installers, Risk of explosion, pressure relief issues and pipework etc.

Boilermate - Recognised by many of the UK's national house builders

The Boilermate system has been widely used throughout the UK within the 'new-build' sector and by discerning householders for many years. Recognising the superior performance and advantages of the system over others, Boilermate has become a household name throughout the country.

Boilermate has evolved

Throughout many years of service the Boilermate system has passed through several evolutionary stages. Each upgraded model superseded all previous models. All though function has varied slightly over years the Boilermate's primary function of providing mains pressure hot water has remained a constant. The BMSCP Eco Stainless will be suitable to replace older models even if a small amount of adjustment to pipework is necessary.

Convert your present hot water system with Boilermate

Boilermate is also popular if you wish to convert an existing gravity hot water system to mains pressure. Being so easy to install Boilermate lends itself to retrofit, upgrading your household hot water system with little fuss.



BOILERMATE BMSCP Eco Stainless Price List



  Model   BMSCP120 BMSCP 150 BMSCP 180 BMSCP 220
  Price (inc VAT)   724.36 754.72 779.74 874.32

  ErP rating   C C C C
  Heat Loss Watts 65 66 72 88
  Capacity litres 116 146 165 211
  Height mm 1075 1145 1275 1575
  Width mm 530 560 560 560
  Depth mm 595 630 630 630
  DHW Volume litres 105 140 160 195
  Coil surface m2 1.18 1.56 1.92 2.54
  Coil rating kW 12 16 17 21
  Coil pressure loss bar 0.2 0.22 0.22 0.28

  Factory fitted scale inhibitor: Please add 60.00

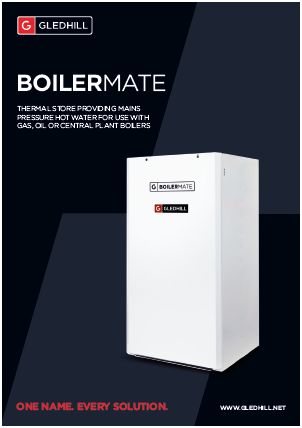

Click image left to see the brochure





If you are looking to upgrade your system (which can be done with consummate ease) or you wish to replace an earlier version with the new Boilermate BP you might like to call our office to learn more.

As a replacement

For those wishing to replace earlier versions of the Boilermate and Systemate please be advised that while the function remains similar the new model differs internally. Earlier models contained various auxiliary components (pumps, circuit boards, timers etc). The design of the new Boilermate has made the function and therefore the need for certain internal components on the earlier model redundant. The new unit will however need a couple of items added externally in order to function - namely a circulating pump and programmer.

It must also be mentioned that the function of the new Boilermate is to produce mains pressure hot water only - unlike some earlier models of Boilermate that also managed domestic heating requirements. When replacing some earlier models minor adaptation of pipework may be necessary to facilitate a Y or S plan installation.

A 3kW immersion heater and a choice of scale inhibitors is available. These however are options and must be stated and ordered at time of purchase.

The removal of certain internal components has made the Boilermate visually and operationally less intimidating to plumbers unfamiliar with the product and/or the principles of Thermal Storage. It has also reduced the purchase cost substantially!

For further more detailed explanation of the Boilermate Thermal Store please click here or call for advice.





We don't need a price promise...



These are already the lowest prices available in the UK!
