Gledhill Torrent ECO HP SOL - Thermal store for heat pump and solar inputs

Gledhill Torrent ECO HP SOL thermal store


ECO Thermal store for use with a Heat Pump and solar input



Thermal store for use with a heat recovery pump and solar energy to provide heating and mains pressure hot water

Combining all the benefits of the Torrent ECO HP model, the ECO HP SOL thermal store facilitates the combination of heat pump, solar and other heat sources in the same system (given the appropriate optional connections), making it arguably the ultimate alternative energies cylinder.

Optional tappings may be added to the cylinder upon request to facilitate the connection of a wood burner, AGA or similar heat source.

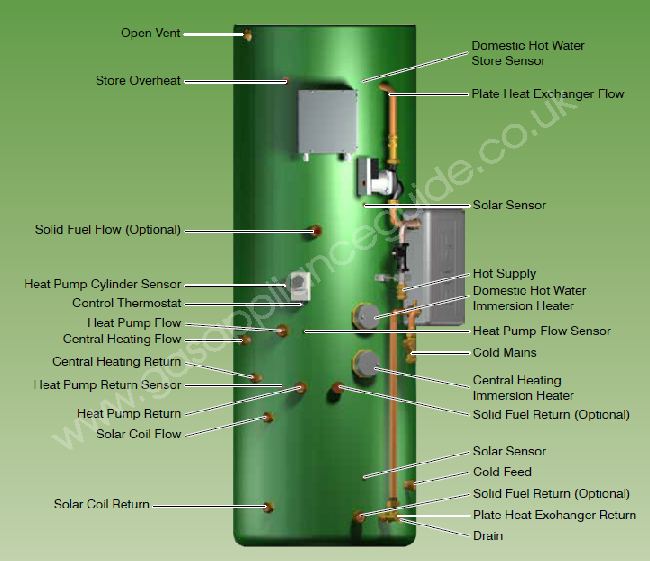

Torrent ECO HP SOL - heat pump and solar thermal store



Click here for Torrent ECO Technical Manual

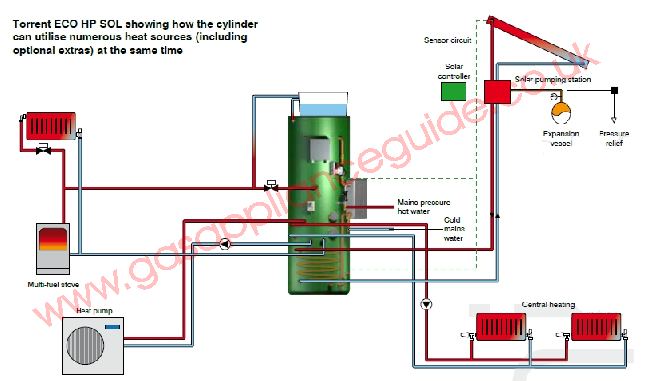

Torrent ECO HP SOL thermal store schematic

Torrent ECO HP SOL Technical Specification

Description

TEC210-HP SOL

TEC250-HP SOL

TEC350-HP SOL

TEC450-HP SOL

Price £ inc VAT 1311.70 1360.66 1798.65 2900.47
Special Offer: Less £40 Limited time only 1271.70 1320.66

Special

1738.65

Special

2800.47

Unit height mm 1414 1654 1874 1764
Unit diameter mm 585 585 636 738
DHW volume litres 210 250 350 450
Dedicated solar volume litres 62 73 101 130
Max solar collector area m2 2.40 2.84 4.00 5.12
Solar exch surface area m2 0.27 0.34 0.40 0.54
Max hot water flow rate litres/min 15 15 15 15
Maximum Dwelling Type Bath 1 1 2 2
Shower room 1 2 1 2
Bed 2 - 3 2 - 3 3 - 4 3-4

Cylinders are fully customisable - additional tappings may be added or unwanted tappings delete from order. Additions and options may attract a small additional charge.

Additional tappings for solid fuel/AGA (gravity flow) heat input - Please add £20.00 per pair (flow & return)

Secondary Return kit:  £POA



Optional feed & expansion tank (F&E)
Type 1 Standard F&E tank supplied with standard plastic float and valve £75.00 inc VAT

Metal High temperature copper header tanks are also available. Click here for details



Off-Peak Economy 7 Controller

HE7T Compatible Off-Peak Economy 7 programmer with timed boost function (Details) £115.75

Notes on F&E Tanks

All thermal stores require a Feed and Expansion tank (F&E) to facilitate thermal expansion, evaporation and system top-up. Existing tanks and other proprietary products may be suitable and therefore used. However, your strict attention is drawn to the suitability of any tank you plan to use in view of the temperature of water that could potentially reach it.

You should ensure the tank you intend to use can handle water at the temperatures associated with thermal stores, with special attention being paid to this issue if an uncontrollable heat source is connected (i.e. wood burning stove, AGA, Rayburn etc).

Horrific injury or death from scalding can result if an overflow scenario exists with a tank that distorts or sags when subjected to high temperature water.

Gledhill can supply two types of F&E tank as an optional extra for use with the Torrent ECO thermal store. The plastic type (Type 1) is suitable for use with 'controllable heat sources'. If 'uncontrollable heat sources' are to be connected then a metal 'high temperature' F&E tank must be used. Both are optional extras and must be ordered with the thermal store to avoid additional carriage charges.

Type 1 is suitable for use on a standard system where the heat source is regulated (e.g. gas or oil boiler controlled by thermostat).

Metal is suited for use with less controllable heat sources such as wood burning stoves or an AGA where heat from the source is unregulated.

*F&E tanks must be sized to take the water expansion of the whole system into account. (i.e. if additional system pipework connects directly to the cylinder the volume of the whole must be taken into account)





Drayton Solar Thermal Controller and Sensors

Drayton Solar Controller

Take control of your domestic solar heating system with this easy-to-use, sleek and functional new Solar Controller from Drayton Heating Controls. The pack also includes 2 Solar Sensors.



For more information...Click Here
