Gledhill PulsaCoil Stainless

Mains pressure hot water from a vented thermal store on off-peak electricity

Index Page > GLEDHILL Hot Water Storage > Gledhill PULSACOIL Stainless thermal store

Gledhill PULSACOIL explained

PulsaCoil STAINLESS

Need an installer?

The newest generation of Pulsacoil has arrived. Different only in appearance to its predecessor, which was housed in a cabinet, this new model is cylindrical in shape.

Manufactured in stainless steel, the cylinder is resistant to the corrosive effects of aggressive water and can utilise off-peak electricity for maximum economy.

The PULSACOIL STAINLESS is an open vented thermal store. Although designed primarily to be heated electrically, this new model can also be heated from an alternative heat source such as an open vented gas boiler. It produces mains pressure hot water, but by virtue of its open vented technology does not require pressure and temperature relief which means no discharge pipework is necessary and no G3 Building Regs - making it hugely popular for use in apartments.

When a hot tap is opened the unit instantaneously heats incoming cold mains pressure water as it passes through a high efficiency plate heat exchanger then delivers hot water quietly to the point of outlet.

Simple to install and easy to maintain.

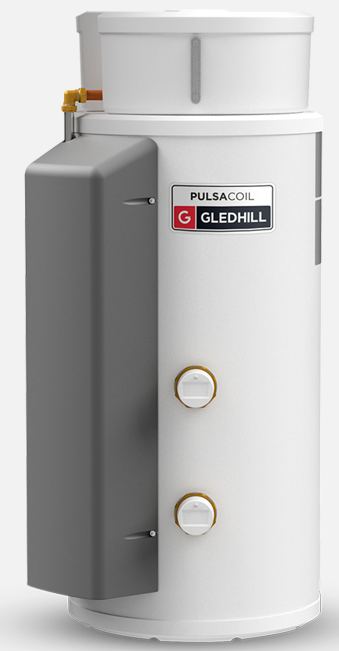

Gledhill PULSACOIL STAINLESS electric thermal store



Features and Benefits of the PULSACOIL STAINLESS
Optional circular feed & Expansion tank with approved aesthetics and reduction in height compared to previous rectangular option.
A new insulated compartment for pipework and plate heat exchanger
Mains pressure hot water from a vented thermal store ensures totally safety while you enjoy maximum performance
Economies of off-peak electricity tariffs can be utilised
No annual maintenance or safety check requirement
No pressure discharge pipework required
No risk of Legionella bacteria
Option to use alternative or supplementary heat source
Immersion heaters that never scale up
No G3 Qualification required for installation
Inherently safe and without the need for annual servicing and certification the PULSACOIL is hugely popular with landlords for use in rented accommodation and dwellings of multiple occupation.



Gledhill PULSACOIL STAINLESS

Technical and Prices

Pulsacoil Stainless differs from earlier models and may require additional components.

For more detailed information click here.

PulsaCoil STAINLESS Technical Specification & Price

Description -

Please indicate required handing when ordering.

LH=Left

RH=Right

PCCST150LH

PCCST150RH

PCCST180LH

PCCST180RH

PCCST210LH

PCCST210RH

Special Offer Price*

including VAT



£

1172.55

£

1256.97

£

1428.15
11023

ERP Rating



C

C

C

Heat loss

watts

47

55

62

kWh/24hr

1.48

1.78

2.08

Appliance height

mm

1112

1300

1488

Appliance Diameter

mm

550

550

550

Minimum cupboard height

mm

1582

1770

1958

Minimum cupboard width

mm

670

670

670

Minimum cupboard depth

mm

650

650

650

Approx weight (empty)

kg

35

39

47

Approx weight (full)

kg

186

220

258

Total volume (nominal)

litres

151

181

211

DHW Volume (above 40 degrees)

litres

138

154

196

Max DHW Pressure

bar

5

5

5

Advice

  1. If you are replacing an older existing version of PULSACOIL it is likely you will find the RH unit aligns with your existing pipe work more closely. If required, please ensure to specify RH when you order otherwise you will receive the LH version by default. (Handing refers to which side of the immersion heaters the connections are positioned)

  2. If you live in a hard water area and require a factory fitted scale inhibitor please refer to the 'Options' table further down this page for additional cost.

Inline scale inhibitor

(This Factory fitted option can only be supplied when ordering a new PULSACOIL) Please add to the stated cost of unit.

£105.00

July22

Gledhill Pulsacoil options, spares and accessories



£ inc VAT

(excluding delivery)

XB530

PHE pump PWM

195.45

GT017

Plate heat exchanger (24 plate)

175.33

GT135

Pump isolating valve - outlet (90 degree valve)*

-

SH003

Pulsacoil Immersion Heater

£95.08

XB081

Stat 73oC overheat (manual reset)

-

XB111

Main PCB controller

-

GT198

Cold water sensor

35.00

XB314

Y Strainer

-
GT153 DHW sensor 35.00

XB095

Flow sensor

35.00
A full range of genuine GLEDHILL spares are available for all GLEDHILL products. If you cannot find what you seek here please call.



-

AMA1

Annual maintenance agreement

-

The cost of some items listed are affected by fluctuations. Please call for a current price.

*When ordering the pump isolating valve for a 150 lutre model please be advised it will include the check valve. If used for the top connection please remove this component.



Off-Peak Economy 7 Controller

HE7T

Compatible Off-Peak Economy 7 programmer with timed boost function (Details)

poa





*These are SPECIAL OFFER PRICES available for a LIMITED TIME ONLY

Prices will change without notice.



PulsaCoil STAINLESS Model Selection Guide

Bedroom



1-2

2-3

2-3

2-4

Bathroom



1 or

1

1

2

En-suite shower room



1

1

2

1

Suggested model

(7 hour off-peak)

Model size

PCCSST150LH

PCCSST150LH

PCCSST180LH

PCCSST210LH

Suggested model

(10 hour off-peak)

Model size

PCCSST150LH

PCCSST150LH

PCCSST180LH

PCCSST180LH



Notes:

  1. The 'Appliance Height' stated in the table is to the top of the cylinder. If sitting the F&E tank on top a further 470mm (when using the round 220mm high tank) or 670mm (when using the rectangular 400mm tank) should be added to establish the full height (Cylinder including F&E) allowing room for servicing.

  2. The F&E tank can be remotely sited above the Pulsacoil.

  3. Full thermal store volume reheated from 35oC to 75oC.

  4. 210 litre model is supplied with a rectangular header tank which should be sat on a shelf above the unit.

  5. A round F&E tank supplied with the 150 and 180 models is designed for manual fill only. A larger rectangular tank is supplied with the 210 model which can be filled manually or automatically when installed with a float valve and permanent water connection.

  6. If a rectangular F&E tank is required when purchasing the 150 or 180 models this must be specified at the time of order.

  7. An external 'off-peak' controller (programmer) must be used with the Pulsacoil.



PulsaCoil Stainless Brochure

For full Technical Specification, Installation and Servicing Instructions please see manual

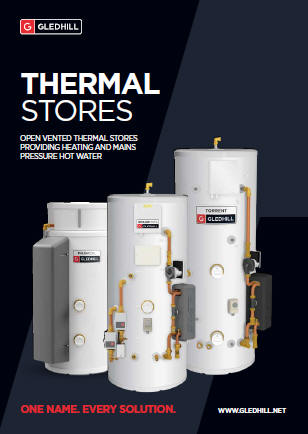

Gledhill PULSACOIL STAINLESS brochure

Click Image

PulsaCoil Stainless Tech Manual

For full Technical Specification, Installation and Servicing Instructions please see manual

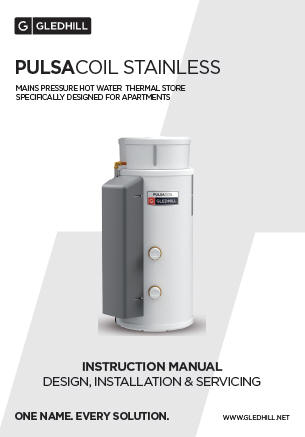

Gledhill PULSACOIL STAINLESS technical manual

Click Image

Somebody offered to price match? Click here to read more.....


PULSACOIL is a Trade Name. A PULSACOIL is an aesthetically pleasing unit that provides mains pressure hot water safely from a vented store with the benefit of low cost energy.

Click here for a more detailed explanation of PULSACOIL

Looking for an alternative to PULSACOIL?

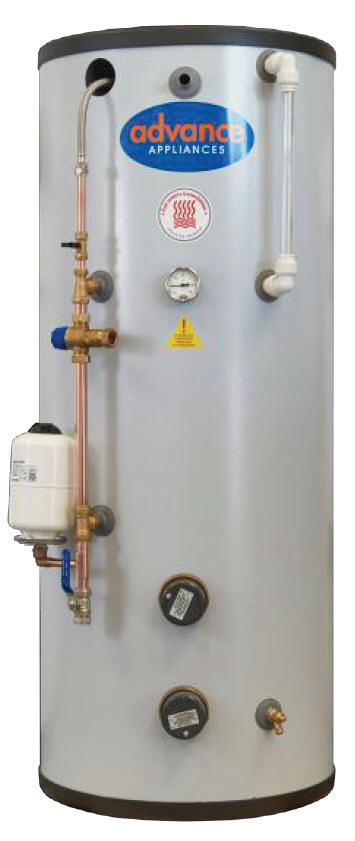

Take a look at the ADVANCE ETS. Performs the same function as PULSACOIL but without the need for electronics and pumps.

Advance Aplliance ETS Electric thermal store cylinder
